To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Standard package: Carton box package, 50pcs/layer, 100pcs/carton.
Customized package also available.
Einzelheiten zum Produkt
Herkunftsort: Guangdong, China
Markenname: Longyuan Lock
Zertifizierung: FCC CE RoHS ISO9001
Modellnummer: LY-8850
Zahlungs- und Versandbedingungen
Min Bestellmenge: 1 Stücke
Preis: negotiable
Verpackung Informationen: Kartonverpackung: 100 Stück/Karton oder kundenspezifische Verpackung nach Kundenwunsch.
Lieferzeit: Tage 5-15work
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 10000pcs/day
Produkt-Name: |
elektrischer Fahrradverschluß der intelligenten Batterie |
Verschlussgröße: |
80mmx59mmx14mm |
Gewicht mit Haken: |
200g |
Verschluss-Material: |
SPCC, Pulver-Metallurgie |
Nennspannung: |
DC12V (Spannung 5-24V fertigte) besonders an |
Gegenwärtig: |
2A |
Setzen Sie Weise frei: |
Hebel der Energie-on/Emergency |
Verwendung: |
Energieaustausch-Schließfachverschluß, elektrischer Fahrradverschluß |
Produkt-Name: |
elektrischer Fahrradverschluß der intelligenten Batterie |
Verschlussgröße: |
80mmx59mmx14mm |
Gewicht mit Haken: |
200g |
Verschluss-Material: |
SPCC, Pulver-Metallurgie |
Nennspannung: |
DC12V (Spannung 5-24V fertigte) besonders an |
Gegenwärtig: |
2A |
Setzen Sie Weise frei: |
Hebel der Energie-on/Emergency |
Verwendung: |
Energieaustausch-Schließfachverschluß, elektrischer Fahrradverschluß |

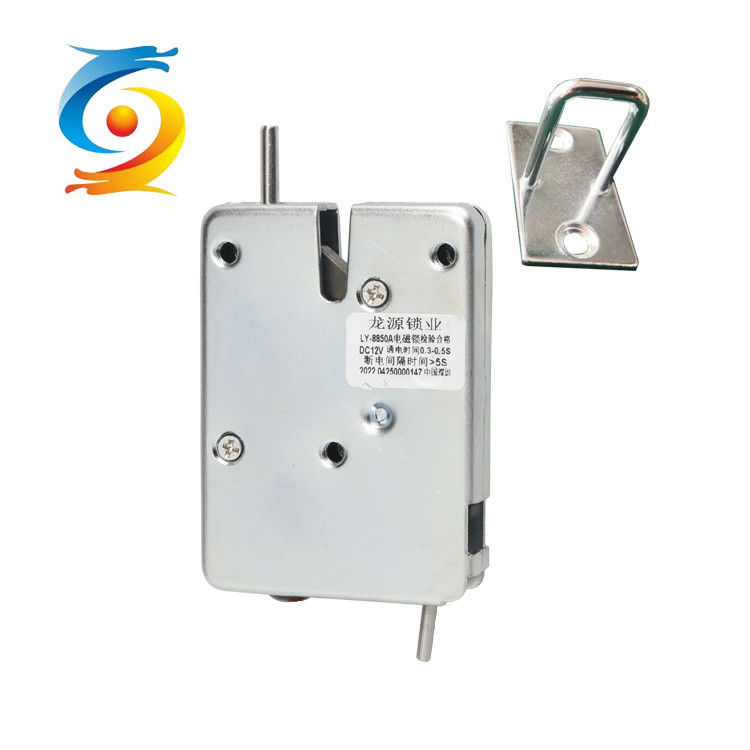

Oem Factory Hidden DC24V Electric Solenoid Lock Anti-Pry Locks For Battery Shared Locker
Product Quick Detail
1. Model: LY-8850
2. Connector: SM-2Y,SM-2A, accept customized
3. Elasticity of Opening door: ≥0.8kg ±15%
Product Features
LY-8850 is an electromagnetic lock developed by Shenzhen Longyuan Lock factory.
The electronic lock is activated by a high-strength engine gear, and has a fully automatic unlocking.
There are various styles of electronic cabinet lock unlock way: Phone +Fingerprint + Password + Card+face recognition
There is no front and back design, and all sizes of cabinets and drawers with left, right, up and down door opening directions can be used universally.
Principle
Electromagnetic lock is based on 51 series single-chip microcomputer (AT89051) and equipped with corresponding hardware circuit to complete password setting, storage, identification and display, drive electromagnetic actuator and detect its driving current value, receive alarm signal sent by sensor, send data and other functions. The single-chip microcomputer receives the typed code and compares it with the password stored in the EEPROM. If the password is correct, the electromagnetic actuator will be driven to unlock.
Technological Parameters
|
Product name
|
Electric Solenoid Lock |
|
Place of Origin
|
Shenzhen China
|
|
Brand Name
|
Longyuan Lock
|
|
Model Number
|
LY-8850
|
|
Lock Body size
|
80mmx59mmx14mm
|
|
Weight with hook
|
200g
|
|
Weight with hook
|
SPCC,Powder Metallurgy
|
|
Surface treatment
|
Galvanized
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
Rated Voltage
|
DC12V(accept customized)
|
|
Min Unlock Voltage
|
9.5V
|
|
Current
|
2A
|
|
Max Power
|
24W
|
|
Manner of working
|
Open after power on
|
|
Reaction time
|
0.3sec
|
|
Blackout interval
|
>5sec
|
|
Salt spray testing
|
≥48hours
|
|
Working temperature
|
-40℃ to +80℃
|
|
Working humidity
|
95%
|
|
Working life
|
more than 100,000 times
|
|
Sample
|
Available
|
|
OEM
|
Accepted
|
|
Signal detection/ switch(open/close)
|
Open/ Close Feedback for option
|
|
Install way
|
Screw
|
|
Unlock way
|
power on and emergency lever
|
|
Certification
|
CE,ISO9001, RoHS
|
|
Warranty
|
1year
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Standard package: Carton box package, 50pcs/layer, 100pcs/carton.
Customized package also available.
